    120mm RGB CPU Computer Case Coolers Radiator Leakproof High Flow Pump For AMD/Intel CPU

    Ask Lasest Price
    Brand Name : ETEK
    Model Number : WM-120-Colorful
    Certification : CE/ROHS
    Payment Terms : L/C, T/T
    Delivery Time : 25-30 Working Days
    • Product Details
    • Company Profile

    120mm RGB CPU Computer Case Coolers Radiator Leakproof High Flow Pump For AMD/Intel CPU

    Water Cooled Radiator RGB

    ETEK 120mm CPU Cooler 120 Water Cooled Radiator Leakproof High Flow Pump RGB Liquid Cooling System for AMD/Intel CPU


    Model NO.:WM-120-Colorful

    Product Name:120 RGB Water cooled radiator

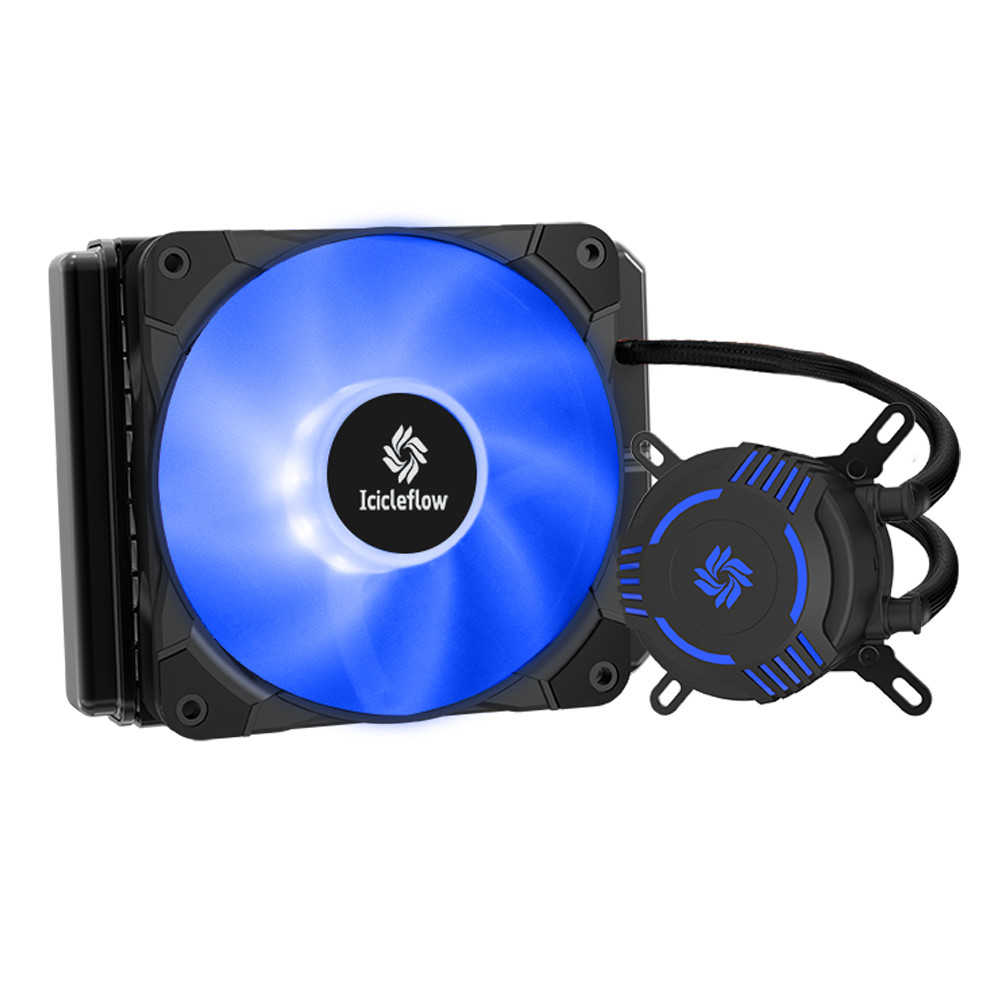

    Product Picture:


    120mm RGB CPU Computer Case Coolers Radiator Leakproof High Flow Pump For AMD/Intel CPU120mm RGB CPU Computer Case Coolers Radiator Leakproof High Flow Pump For AMD/Intel CPU120mm RGB CPU Computer Case Coolers Radiator Leakproof High Flow Pump For AMD/Intel CPU

    Product Feature:

    1.Skive copper base for easy heat conduction

    2.Three-phase brushless sensorless motor and driver

    3.Disconnect-type impeller design

    4.High reliability FEP tubing

    5.Low noise design

    6.Low rate of evaporation design

    7.High heat resistance choice (PPS+40%GF housing)

    8.No-rubber and low flow resistance manifold design

    9.Customized logo

    10.Colorful LED light circle

    11.12027 radiator, more efficient heat dissipation


    Specification or Parameters

    ItemSpecification or Parameters
    Pump head sizeL65*W65*H60 mm
    Radiator size120*157*27 mm
    FEP Tubing specFEP, L=350 mm
    Heat contacting material99.9% copper
    Pump bearingGraphite bearing
    Pump shaftCeramics shaft
    HousingPPS+40%GF
    Impeller poles10 Poles
    Stator slots12 slots
    Starting voltage>DC 6V
    Motor typeThree phase brushless sensorless motor
    Rated voltageDC 12V
    Rated power2.8
    T-rising9.7K-11.0K(120W)only for reference
    Acoustical noise<30dB
    LED SPECLED 3528
    LED QTY12PCS
    Working temperature-10~40°C
    Storage temperature-20~60°C
    Rated Current0.23A±10% MAX
    Speed2650±10% RPM
    Pump power wire+UL1007 24#( 24# black cable),outside length 300mm; UL 1007, 24 AWG, black, bonded, L=300mm
    Fan Specification
    Outline120*120*25mm
    Rated VoltageDC12V
    Operating Voltage Range8~13.2V
    Auto startYESa. Rated Voltage
    Tachometer OutputYESb. 25℃,65% RH
    PWMYES
    Rated Current0% 0.035A±10%
    100% 0.24A±10%
    Locked CurrentBrake protection
    Power Consumption2.24W+10%MAXa. 25℃,65% RH
    b. Free Air
    Speed 100%0%: 800±80R.P.Mc. Rated Voltage
    100%:2200±220R.P.M
    Max. Airflow65.5CFM(ft3/min)a. Rated Voltage
    b. AMCA(Standard)
    c. Rated Current
    Max. Static Pressure2.34mm-H2O
    Noise Level31.1dB(A)a. CNS 8753 (Standard)
    b. ISO 3744 (Test Condition)
    Life30,000/hrs 25℃MTBF(Mean Time to Failure)
    Conf. Level 90%
    No. of Blade9 Blades
    Rotating orientationAnticlockwise
    Suitable socket
    Intel socketLGA775/115X/1366/2011/2066 (Core i3/i5/i7/i9 CPU)
    AMD socketFM1/FM2/AM2/AM2+/AM3/AM3+/AM4 CPU
    Accessories
    Part NameSpecQTY
    Cooling fan12025 ARGB1
    Back plateMetal back plate suitable Intel and AMD1
    Nut of back plateNut of back plate4
    INTEL bracketLeft and right2
    AMD bracketLeft and right2
    Thermal greaseHigh conduct thermal grease(0.5g)1
    Spring nutSpring nut4
    Plastic gasketPlastic gasket4
    Metal gasketMetal gasket4
    2011 two side thread boltLGA 2011 two side thread bolt4
    Long boltLong bolt with separate plastic pole4
    Fan screwFan screw4
    Radiator screwRadiator screw4
    Transfer cableFan wire one to two1
    Unser manualyes1
    Packing description
    Net weight1.1kg
    Gross weight1.6KG
    Retail box sizeL240*W200*H150 MM
    Packing typeColorbox + Carton
    Carton size(8sets)L505*W425*H320 MM
    Unit/carton8
    Pallet size(mm)1219MM X 1016MM
    Carton/ pallet24
    Warranty
    Warranty1 year
